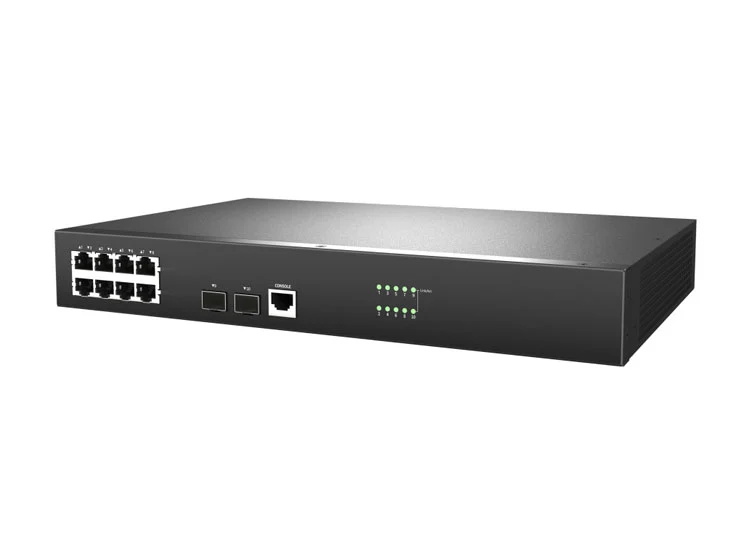

S3200-10TF Series L2 Managed Gigabit Ethernet Switch
Prix : 50-800USD
• Full gigabit L2 managed Ethernet switch
• IEEE802.3af/at standard supported on selected models
• Support TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSHv2
• Support ERPSv1, STP/RSTP and MSTP
• Easy network management by web browser, CLI, Telnetrial console
SPECIFICATION OF S3200-10TF SERIES L2 MANAGED GIGABIT ETHERNET SWITCH
Items |
S3200-10TF |
S3200-10TF-P |
|
PORT |
10/100/1000BaseT(X) Ports |
8 ports |
8 ports |
1G SFP |
2 ports |
2 ports |
|
GE out-of-band management ports |
N/A |
N/A |
|
console RJ45 ports |
1 |
1 |
|
Power over Ethernet |
N/A |
IEEE802.3af/at, 60W power budget |
|
Performance |
Flash memory |
32M Byte |
32M Byte |
DDRIII capacity |
128M Byte |
128M Byte |
|
MAC address table size |
8K |
8K |
|
ARP table size |
1K |
1K |
|
Jumbo frames |
9KB |
9KB |
|
Switching capacity |
20Gbps |
20Gbps |
|
Auto-negotiation |
Supported |
Supported |
|
Auto-MDI/MDIX |
Supported |
Supported |
|
Power supply |
Input range |
12V/1A |
53V/1.5A |
System power consumption |
12W |
80W |
|
LED |
Port LED |
Green: link/active |
Green: link/active |
Yellow: speed |
Yellow: speed |
||
|
Yellow: PoE |
||
Mechanical |
Dimension (W x D x H) mm |
266*161*43.6 |
266*161*43.6 |
Environment |
Dimension (W x D x H) mm |
266*161*43.6 |
266*161*43.6 |
Operating Temperature |
0º to 50ºC |
||
Storage Temperature |
-40º to 70ºC |
||
Operating Humidity (non-condensing) |
10% to 90% |
||
Storage Humidity (non-condensing) |
10% to 90% |
||
Certifications |
FCC Class A |
Supported |
|
CE |
Supported |
||
Safety Compliance: CB |
Supported |
||
Safety Compliance: UL |
Supported |
||
L2 Faetures |
VLAN |
IEEE 802.1Q VLAN; |
|
IEEE 802.1v Protocol-based VLAN; |
|||
Port-based VLAN; |
|||
IP Subnet-based VLAN, MAC-based VLAN, Voice VLAN; |
|||
GVRP; |
|||
QinQ |
|||
Link aggregation |
Static link aggregation; |
||
IEEE 802.3ad with LACP; |
|||
Unicast/Multicast load balance over trunk port |
|||
Redundancy Protocols |
ERPSv1, STP/RSTP and MSTP |
||
ACL |
L3/L4 ACL; |
||
Statistics ACL; |
|||
VLAN ACL; |
|||
VLAN ACL; |
|||
QOS |
Traffic Classification (802.1p/ToS/port/DiffServ); |
||
SP, WRR, SP+WRR; |
|||
8 queues/port of Priority Queues |
|||
IGMP |
IGMP v1v2v3, IGMP Snooping |
||
Storm Control |
Broadcast/Multicast/ Unknown Unicast Storm Control |
||
Security |
RADIUS / TACACS+, IEEE 802.1X; |
||
Port authentication, MAC Authentication bypass; |
|||
DHCP Snooping (Option 82), IP Source guard, DoS Protection |
|||
IPv6 |
IPv4/IPv6 Dual Protocol Stack, IPv6 DHCP |
||
Management |
CLI via console port or Telnet, Web management, SNMPv3; |
||
RMON (groups 1, 2, 3 and 9); |
|||
MIB II; |
|||
DHCP client, DCHP Relay; |
|||
FTP/SFTP/TFTP client; |
|||
NTP; |
|||
LLDP; |
|||
ping; |
|||
Traceroute; |
|||
syslog |
Now the price of 8 port layer 2 switch is reasonable, if you have needs, please contact us.
If you want to know more kinds of hardware components of iot, please visit our website.
