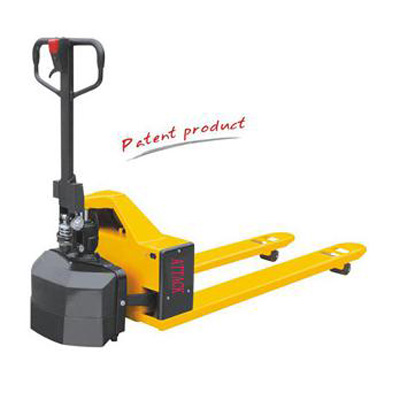

Semi-electric Pallet Truck CBD10A-II
Prix : 1000-6000USD
Description: We are professional Semi-electric Pallet Truck CBD10A-II supplier and factory in China.We can produce the semi electric pallet truck according to your requirements.
Product Features of the semi electric hand pallet truck
Two-speed driving system.
Emergency brake switch.
Manual lifting and motor driving.
AC motor,no carbon brush,maintenance free,low noise.
Sealed batteries free of maintenance,safe operation and no pollution.
Built-in charger.
Conform to EN 1757-2.
Parameters
Model |
|
CBD10A-Ⅱ |
Load Capacity |
Q(kg) |
1000 |
Load centre distance |
c(mm) |
500 |
Lowered fork height |
h13(mm) |
85/75 |
Wheelbase |
y(mm) |
1280/1350 |
Tyre size,front |
mm |
Φ175 |
Tyre size,rear |
mm |
Φ80/Φ74 |
Max. lift height |
h3(mm) |
200/190 |
Height of tiller in drive position min./max. |
h14(mm) |
1244 |
Overall length |
l1(mm) |
1685/1755 |
Length to face of forks |
l2(mm) |
535 |
Fork dimensions |
s/e/l(mm) |
45/160/1150(1220) |
Width overall forks |
b5(mm) |
520/550/680 |
Ground clearance,centre of wheelbase |
m2(mm) |
30/20 |
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1885/1955 |
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1935/1955 |
Turning radius |
Wa(mm) |
1490/1560 |
Travel speed,laden/unladen |
Km/h |
2.6/3.8 |
Max.gradeability,laden/unladen |
% |
5/15 |
Drive motor rating S2 60 min |
kW |
0.5 |
Battery voltage,nominal capacity K10 |
V/Ah |
24/38 |
Battery weight |
kg |
26 |
Service weight (with battery) |
kg |
150 |
ATTACK GLOBAL mainly produces and supplies multi lift fork trucks, electric warehouse trucks, aerial work platforms, etc., planning to help customers meet their specific needs.
