Skid mounted transformer oil treatment,energized transformer oil purification plant
Quantité : 100 Prix : 6 000,00 €

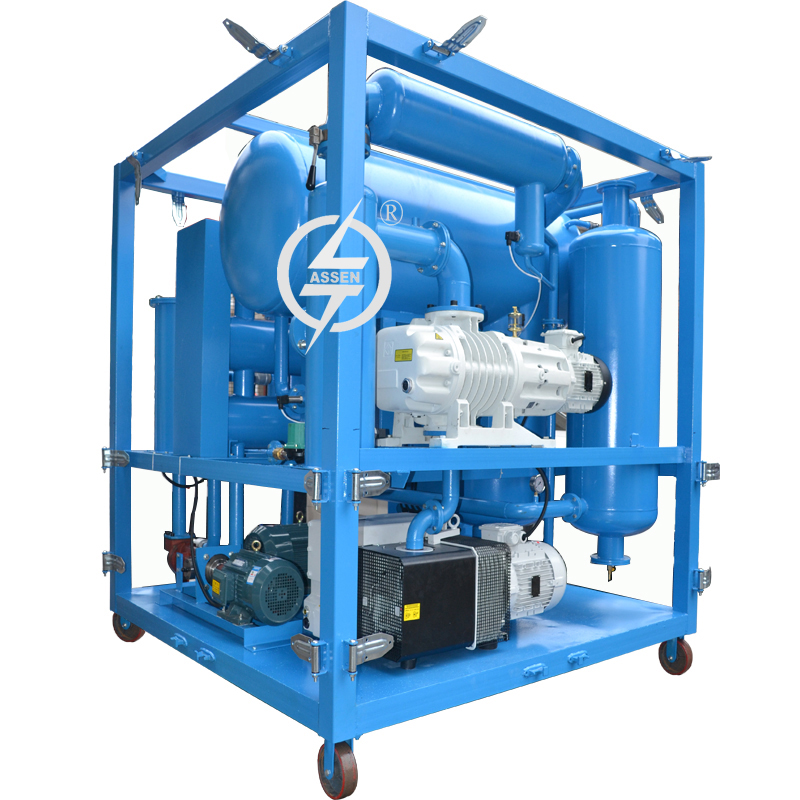

ZYD Transformer Oil Purification Machine
Thousands of oil filled transformers that contain huge quantities of insulating oils inside them are in service today. Transformer Oil Treatment machine at regular intervals ensures;
- Provide efficient cooling system.
- Protect the transformer core and coil assembly from chemical attacks.
- Provide dielectric strength of the transformer insulation system
- Prevent formation and stagnation of sludge in the transformer
Introduction:
ZYD energized transformer oil purification process serves to improve the properties of insulating oil. It eliminates the acid nature, over moisture, traces of water, dissolved gases, and particulate matter from the insulating oil effectively and rapidly. The bottom line of this purification process is to enhance the performance level of transformers, circuit breakers, mutual inductors, cables, and capacitors. All these equipment and machinery use an insulating system.
Aftre treatment
Moisture |
PPM |
≤3 |
Gas content |
% |
≤0.01 |
Impurity size |
μ |
≤1 (no free carbon) |
Breakdown voltage |
kV |
≥75 |
IFT |
dynes/cm |
≥40 |
Acid value |
mgKOH/g |
≤0.03 |
Dielectric loss factors |
tgδ(90°C) |
≤0.001 |
Technical Data
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow rate |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
MPa |
0.08 ~ 0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Temperature Range |
℃ |
20 ~ 80 |
|||||||
Power |
|
Three Phase 50HZ380V(as per the customer's requirements) |
|||||||
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
Please contact: Assen
Email: assenoilpurifier(at)gmail(dot)com
sales(at)assenpe(dot)com
Whatsapp: +86-15223801122
Personne à contacter : ASSEN PURIFICATION, +15 2 23 80 11 22
