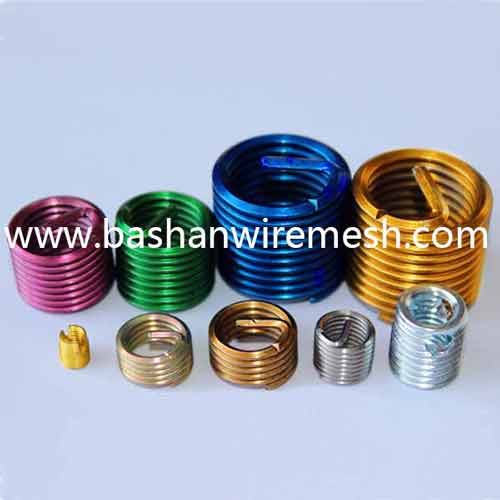

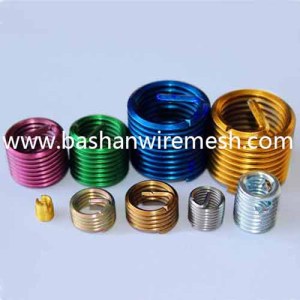

Stainless steel 304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert

Quantité : 100PCS Prix : USD 0.03/PC

304 316 wire thread insert heli-coil-type screw thread insert:

UNC Specification and Assembly Data:

UNC Specification and Assembly Data:
Specification		Nominal Length		w	Dz		d0
		L×d
d×p	p	×d	L1		min	max
2-56 (0.086)	0.453	1d	2.2	3	2.7	2.9	2.4
		1.5d	3.3	5.25
		2d	4.4	7.4
		2.5d	5.5	9.6
4-40 (0.112)	0.635	1d	2.9	2.8	3.6	4	3.1
		1.5d	4.3	4.8
		2d	5.8	6.8
		2.5d	7.2	8.8
5-40 (0.125)	0.635	1d	3.2	3.3	4	4.4	3.4
		1.5d	4.8	5.5
		2d	6.4	7.8
		2.5d	7.9	10
6-32 (0.138)	0.794	1d	3.5	2.8	4.5	4.9	3.8
		1.5d	5.3	4.8
8-32 (0.164)	0.794	1d	4.2	3.5	5.2	5.6	4.4
		1.5d	6.3	5.9
		2d	8.3	8.3
		2.5d	10.5	10.7
10-24 (0.190)	1.058	1d	4.8	2.9	6.2	6.6	5.2
		1.5d	7.2	5
		2d	9.6	7.1
		2.5d	12.1	9.2
12-24 (0.216)	1.058	1d	5.5	3.5	6.8	7.2	5.8
		1.5d	8.2	5.9
		2d	11	8.3
		2.5d	13.7	10.7
1/4''-20	1.27	1d	6.4	3.4	8.2	8.5	6.7
		1.5d	9.5	5.7
		2d	12.7	8
		2.5d	15.9	10.3
5/16''-18	1.411	1d	7.9	4	10	10.3	8.4
		1.5d	11.9	6.6
		2d	15.9	9.3
		2.5d	19.8	1.9
3/8''-16	1.588	1d	9.5	4.4	11.8	12.2	10
		1.5d	14.3	7.2
		2d	19.1	10.1
		2.5d	23.8	12.9
7/16''-14	1.814	1d	11.1	4.5	13.4	14	11.6
		1.5d	16.7	7.4
		2d	22.2	10.3
		2.5d	27.8	13.1
1/2''-13	1.954	1d	12.7	4.8	15.2	15.8	13.2
		1.5d	19.1	7.9
		2d	25.4	10.9
		2.5d	31.8	13.9
9/16''-12	2.117	1d	14.3	5.1	17	17.6	14.9
		1.5d	21.5	8.3
		2d	28.6	11.5
		2.5d	35.7	14.7
5/8''-11	2.309	1d	15.9	5.3	18.9	19.5	16.6
		1.5d	23.8	8.3
		2d	31.8	11.8
		2.5d	39.7	15
3/4''-10	2.54	1d	19.1	5.9	22.4	23	19.7
		1.5d	28.6	9.4
		2d	38.1	13
		2.5d	47.6	16.6
7/8''-9	2.822	1d	22.2	6.3	26	26.7	23
		1.5d	33.3	10
		2d	44.5	13.7
		2.5d	55.6	17.4
1''-8	3.175	1d	25.4	6.4	29.6	30.4	26.2
		1.5d	38.1	10.2
		2d	50.8	14
		2.5d	63.5	17.8
1 1/8''-7	3.629	1d	28.6	6.3	33.4	34.4	29.5
		1.5d	42.9	10
		2d	57.2	13.8
1 1/4''-7	3.629	1d	31.8	7.1	36.7	37.7	33
		1.5d	47.6	11.3
		2d	63.5	15.4
1 3/8''-6	4.234	1d	34.9	6.6	40.6	41.7	36
		1.5d	52.4	10.6
		2d	69.9	14.4
1 1/2''-6	4.234	1d	38.1	7.4	43.9	45	39.5
		1.5d	57.2	11.6
		2d	76.2	15.9

Remark: Please feel free to contact me if you have any questions. And we can receive customize.

Application:
In the aluminum, magnesium, copper alloy, plastic, plexiglass, bakelite and other low-strength engineering materials on the application, can significantly improve the strength and wear resistance. Application of steel, cast steel, cast iron, can improve the durability of screws.

Packing details:

304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert

Packing Details

* Inner: Plastic bag

Out: Carton
* Pallet / Wooden Crate.
* Customized packing.

Processing & Delivery Time

* Common products in one week.

* Special products according to Contract.
* Small package is shipped by Air, DHL, FedEx etc. 4-10days.
* Big size package is shipped by sea, 10-30days.

MOQ

* 10000 Piece/Pieces
* If no Stock, please contact the supplier to confirm it.
* Payment terms: L/C,T/T,Western Union
* Trade term: EXW/ FOB/ CIF.

Delivery:

304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert

304 316 Wire Thread Insert Heli-Coil-Type Screw Thread Insert
Process:	Screws — Forming — Slotting — Threading —Surface treatment—Inspection—Cartons —Packing — Delivery
Sample Availability	We can make the sample within 7 days free of charge if there is available tool for us.( Freight collect

Xinxiang Bashan Aero Material Co., Ltd.

Bashan factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.

In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Our annual manufacturing capability of main products are as follows:

We have successfully set up business relationships with about 20 companies in North America, West Europe and other countries and regions. And we are aerospace and defence industries. Now our annual turnover is in excess of USD 45 million. Please feel free to visit our website or contact us for more information and pictures. We are looking forward to establishing a long-lasting business relationship with you in the near future.

Company Size

With plant area covering about 50,000 square meters, we employ more than 200 managerial and technical personnels and 800 skilled workers.
