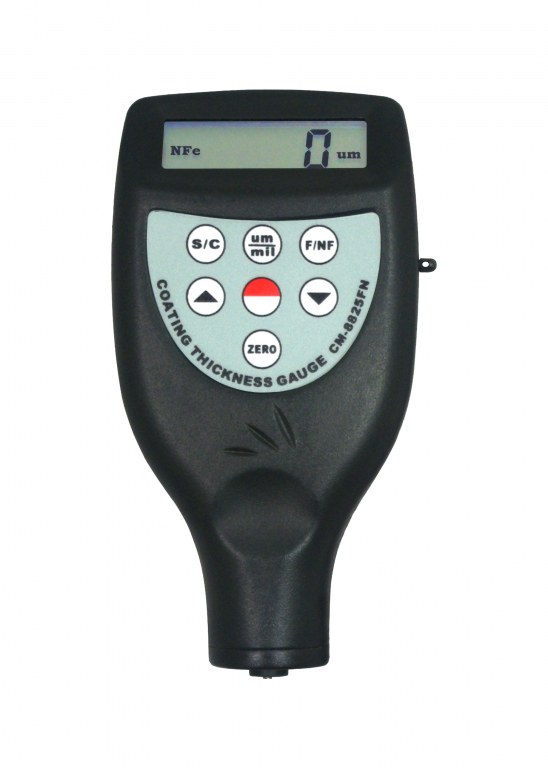

Standard Type Coating Thickness Gauge CM-8825FN
Quantité : 2000 Prix : $1
Standard Type Coating Thickness Gauge
Size: CM-8825FN
Applications:
Standard Type Coating Thickness Gauge CM-8825FN has two measuring methods.How to choose?
Measuring method: F probe
Coating:
*paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.(non-magnetic materials)
*alvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium ti le, some alloy tile, paper etc.
Base: iron, nickle etc.(magnetic materials)
Measuring method: N probe
Coating: anodizing, varnish, paint, enamel, plastic coatings, powder,etc.(non-conductive coatings)
Base: aluminum, brass, non-magnetic stainless steel, etc(non-magnetic materials)
Features:
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curv ed objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have bett er stability,users can get continuous, good repetitive and precise measurements.
Details:
| Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
| Measuring Range | 0~1250 um / 0~50 mil |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 126 x 65 x 27 mm |
| Weight | 81 g (Not Including Batteries) |
For more details,please do not hesitate to contact us.Thank you!
