Statistical Type Coating Thickness Gauge AC-110B/BS
Quantité : 1 piece
Product Description

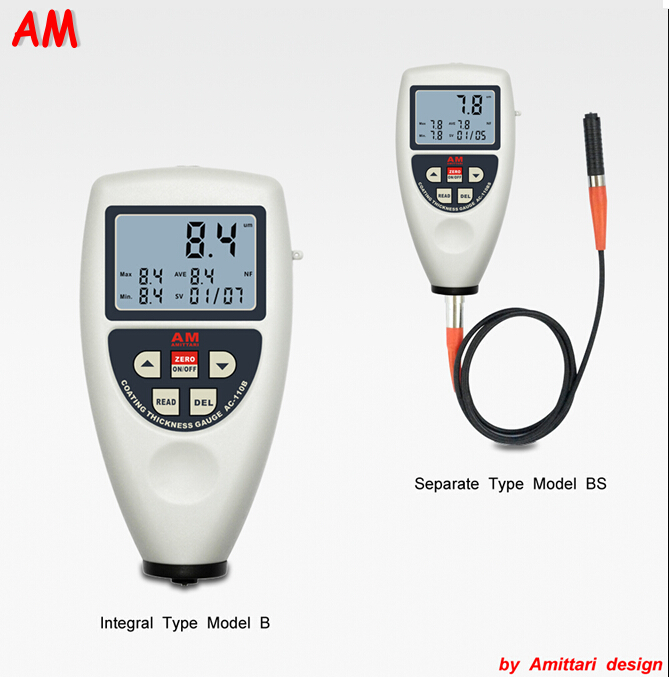

The Statistical Type Coating Thickness Gauge AC-110 Series have two types: Type B ( Integral Type ), Type BS ( Separate Type ); can store 99 groups of the latest measurements ; Integral Type suitable for single-hand operation, large probe with large contact surface have bett er stability, users can get continuous, good repetitive and precise measurements. Separate Type can provide several type probe, measure can be more flexibility.
Product Parameters
|
Measuring Range |
0~1250 um |
|
0~50mil (other range may be specified) |
|
|
Resolution |
0.1 um (0~99.9um)/1 um (over 100um) |
|
Accuracy: |
1~3%n or 2.5 um or 0.1mil (Whichever is the greater) |
|
Minimum Measurement Area |
6 mm |
|
Minimal Surface |
F Type convex1.5 mm / concave 25 mm |
|
NF Type convex 3 mm / concave 50mm |
|
|
Operating Condition |
Temp: 0~50°C / |
|
Humidity: <95%</p>
|
|
|
Size |
120x63x25 mm |
|
Power Supply |
2x1.5vAAA Um-4 Battery |
|
Weight |
90 g (Not including batteries) |
Product Accessories
|
Standard Accessories |
Main Unit |
|
Wrist Ring |
|
|
Calibration Foils |
|
|
Substrate ( Iron ) |
|
|
Substrate ( Aluminium ) |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories
|
USB data output |
|
Bluetooth data output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you ne ed other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth™ data output function ( except few ins truments ) . As Bluetooth™ data output is included in optional accessories, not standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly cont act with the customer-service worker if you need Bluetooth™ data output.
