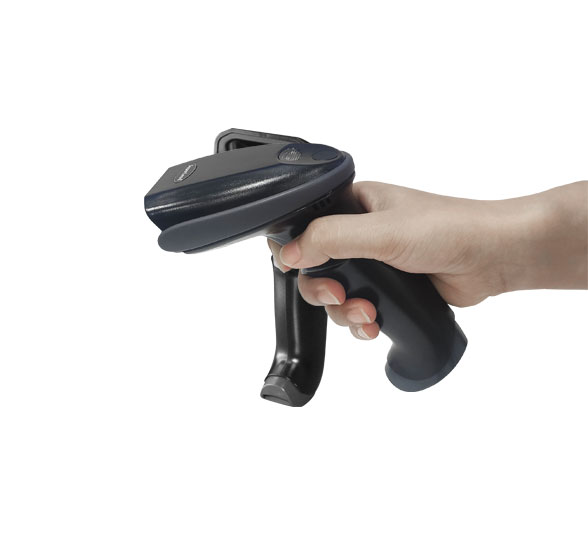

Superlead Industrial Barcode Reader 8160

SuperLead

3300N-HS
Technical Specification

Physical Characteristics

Dimensions:

207mm x 82mm x 109mm

Weight:

475g

VoltageCurrent:

5 VDC +/-10% @ 500 mA

Performance Characteristics

Image (Pixels):

640 pixels (H)x 480 pixels (V)

Light Source:

Aiming: 617 nm LED; illumination: 6500K LED

Field of View:

40° (H) x 32° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Charging time

5-6 h

Working time

1秒扫描一次，可连续工作12小时。

Wireless technolngy

Bluetooth 4.2

Operation distance

250 meters (open space)

Print Contrast:

25% minimum reflective difference

Interfaces Supported:

USB, OTA, RS232

Motion Tolerances

up to 25 in. (63.5 cm) per second

Symbology Decode Capability

1-D:

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

User Environment

Operating Temperature:

-40°C to 70°C

Storage Temperature:

0% to 95% relative humidity,non-condensing

Humidity:

Designed to withstand 1.5m(5') drops

Shock Specififications:

0°C to 50°C

Ambient Light Immunity:

100.000 Lux.

Decode Ranges

5 mil (Code 39)

30mm-90mm

13 mil (100% Upca)

40mm-170mm

1D Minimal Resolution

4mil

Performance may be impacted by bar code quality and environmental conditions.
