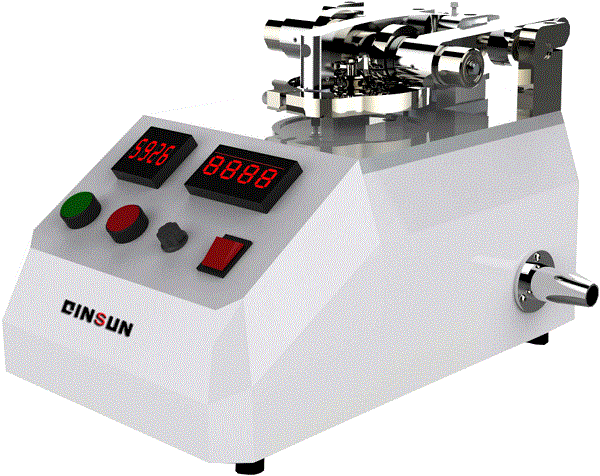

Taber abraser(Abrader)

Taber abraser(Abrader) consists of a rotary platform to place test specimen, a pair of articulated arms with friction wheel, a motor used to drive the turntable rotation, a counter used to set the rotation number of turntable with the automatic stop function, and a suction device used to take away the debris.

By cahaIt's suitable for a variety of materials' test, such as papers, textiles, rubbers, coatings and many other tests due to the replacement of different wear wheels.

Standards

1. ISO 9352 Plastics - Determination of resistance to wear by abrasive wheels

2. ISO 5470 Rubber- or plastics-coated fabrics - Determination of abrasion resistance

3. ASTM D1044 Test method for resistance of transparent plastics to surface abrasion

4. ASTM D3884 Standard guide for abrasion resistance of textile fabrics (rotary platform, double-head method)

5. JIS K6902 Testing method for laminated thermosetting high-pressure decorative sheets

Features

Logic circuit control, simple and reliable operation.

The height of the suction port is suitable for different thickness materials

250g wear arm. Two kinds of wear wheels can be adapted to a variety of materials.

Technical Parameters
