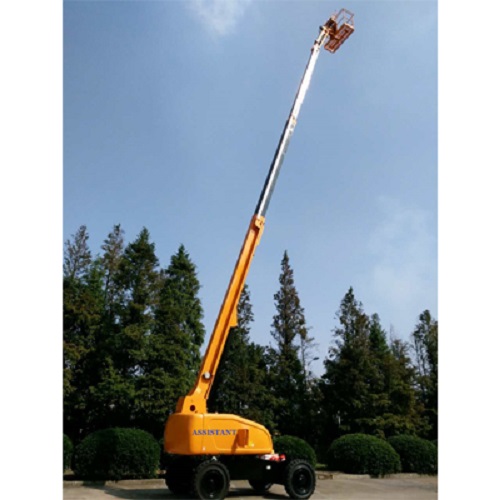

Telescopic Working Platform 39-44M

We are professional Telescopic Working Platform 39-44M supplier and factory in China.We can produce the product according to your requirements

Travelling System

Axis Oscillating: driven by hydro-cylinder , the wheel axis oscillating can fully ensure stability of the whole machine when working.Four-Wheel-Drive and Solid Tires: four turning modes including front-wheel, rear-wheel, front &rear turning and slanting drive, powerful gradeability.

Electrical Controlling System

Automatic Range Restrictor: safety alarm, auto speed-limiting and range restriction function which is controlled by intelligent system.

Advanced CAN-BUS Controlling Mode: simple circuit,, easy maintenance and excellent reliability.

Telescopic Working Platform 39-44M Main components list

NO

Name

Brand

1

Engine

Cummins from JapanOR Perkins fromUK

2

Variable pump

Rexroth from German OR SAUER fromUSA OR Sam fromItalyOR Eaton fromUSA

3

Gear pump

MARZOCCHI fromItalyOR SALAMI fromItaly

4

Travel motor

Rexroth from German OR SAUER fromUSA

5

Travel reducer

Rexroth from German OR Reggiana Riduttori fromItalyOR PMP fromItaly

6

Hydraulic valve

Oil-control from ItalyOR Hydroforce fromUSA

7

Rotary motor

HELAC fromUSA

GTBZ39 & GTBZ44Z Telescopic Boom

Measurements Specifications

MODEL

GTBZ39

GTBZ44Z

MEASUREMENTS

Metric

US

Metric

US

Working height maximum *

41m

135ft

43.7m

143ft

Platform height maximum

39.3m

129ft

42m

138ft

Horizontal reach maximum **

21.5m

60ft

23m

75ft

Below ground reach

4.8m

15ft9in

6.2m

20ft4in

A

Platform length-8ftmodel

0.91m

3ft

0.91m

3ft

Platform length-6ftmodel

0.76m

2ft6in

0.76m

2ft6in

B

Platform width-8ftmodel

2.44m

8ft

2.44m

8ft

Platform width-6ftmodel

1.83m

6ft

1.83m

6ft

C

Height-stowed

3.1m

10ft

3.11m

10ft

D

Length-stowed

13.65m

45ft

13m

42ft7in

E

Width –axle retracted

2.49m

9ft

2.49m

9ft

Width –axle extended

3.9m

12ft8in

3.9m

12ft8in

F

Wheelbase

3.96m

13ft

3.96m

13ft

G

Ground clearance-center

0.43m

1ft5in

0.43m

13ft

PRODUCTIVITY

Lift capacity (restricted)

480kg

1056lbs

480kg

1056lbs

Lift capacity (non-restricted)

340kg

748lbs

250kg

550lbs

Platform rotation

160°

160°

Jib rotation

—

135°

Turntable Swing

360°continuous

360°continuous

Turntable tail swing-axle retracted

1.82m

6ft

1.82m

6ft

Turntable tail swing -axle extended

1.11m

3ft7in

1.11m

3ft7in

Travel speed -stowed

4.4km/h

2..73mph

4.4km/h

2..73mph

Travel speed -raised or extended

1.1km/h

0.68mph

1.1km/h

0.68mph

Gradeability -stowed (4WD/2WD)

38%/27%

38%/27%

Turning radius - axle retracted inside Turning radius - axle retracted outside

3.13m

10ft4in

3.13m

10ft4in

5.43m

17ft9in

5.43m

17ft9in

Turning radius - axle extended inside Turning radius - axle extended outside

3.13m

10ft4in

3.13m

10ft4in

6.75m

22ft

6.75m

22ft

Controls

24V DC Proportional

24V DC Proportional

Solid tires

385/65D 22.5

385/65D 22.5

POWER

Power source

Cummins B3.3 80 HP (60kw) Lovol 1004-4 78 hp (58kw) Perkins 400 76 hp (56kw)

Auxiliary power unit

24V DC

24V DC

Hydraulic tank capacity

<span style="fon
