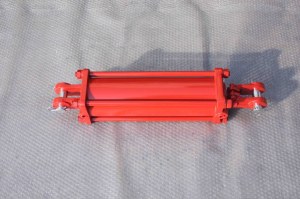

Tie-rod Hydraulic Cylinder 3000 PSI
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Tie-rod Hydraulic Cylinder 3000 PSI

Quantité : 20,000 pcs   Prix : $40-$90

Tie Rod Cylinder 3000 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR30-2004 1 1/8'' 2''*4'' 14 1/4'' 18 1/4'' 3/8NPT & SAE#8 1'' 18
TTR30-2006 2''*6'' 16 1/4'' 22 1/4'' 19
TTR30-2008 2''*8'' 18 1/4'' 26 1/4'' 20
TTR30-2008-ASAE 2''*8'' 20 1/4'' 28 1/4'' 20
TTR30-2010 2''*10'' 20 1/4'' 30 1/4'' 21
TTR30-2012 2''*12'' 22 1/4'' 34 1/4'' 25
TTR30-2014 2''*14'' 24 1/4'' 38 1/4'' 26
TTR30-2016 2''*16'' 26 1/4'' 42 1/4'' 28
TTR30-2016-ASAE 2''*16'' 31 1/4'' 47 1/4'' 28
TTR30-2018 2''*18'' 28 1/4'' 46 1/4'' 29
TTR30-2020 2''*20'' 30 1/4'' 50 1/4'' 31
TTR30-2024 2''*24'' 34 1/4'' 58 1/4'' 35
TTR30-2030 2''*30'' 40 1/4'' 70 1/4'' 39
TTR30-2036 2''*36'' 46 1/4'' 82 1/4'' 40
TTR30-2040 2''*40'' 50 1/4'' 90 1/4'' 43
TTR30-2048 2''*48'' 58 1/4'' 106 1/4'' 49
Tie Rod Cylinder 3000 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR30-2504 1 1/4'' 2.5''*4'' 14 1/4'' 18 1/4'' 3/8NPT & SAE#8 1'' 17
TTR30-2506 2.5''*6'' 16 1/4'' 22 1/4'' 22
TTR30-2508 2.5''*8'' 18 1/4'' 26 1/4'' 24
TTR30-2508-ASAE 2.5''*8'' 20 1/4'' 28 1/4'' 25
TTR30-2510 2.5''*10'' 20 1/4'' 30 1/4'' 26
TTR30-2512 2.5''*12'' 22 1/4'' 34 1/4'' 27
TTR30-2514 2.5''*14'' 24 1/4'' 38 1/4'' 29
TTR30-2516 2.5''*16'' 26 1/4'' 42 1/4'' 31
TTR30-2516-ASAE 2.5''*16'' 31 1/4'' 47 1/4'' 33
TTR30-2518 2.5''*18'' 28 1/4'' 46 1/4'' 34
TTR30-2520 2.5''*20'' 30 1/4'' 50 1/4'' 36
TTR30-2524 2.5''*24'' 34 1/4'' 58 1/4'' 39
TTR30-2530 2.5''*30'' 40 1/4'' 70 1/4'' 44
TTR30-2536 2.5''*36'' 46 1/4'' 82 1/4'' 46
TTR30-2540 2.5''*40'' 50 1/4'' 90 1/4'' 48
TTR30-2548 2.5''*48'' 58 1/4'' 106 1/4'' 55
Tie Rod Cylinder 3000 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR30-3004 1 1/2'' 3''*4'' 14 1/4'' 18 1/4'' 1/2NPT & SAE#8 1'' 23
TTR30-3006 3''*6'' 16 1/4'' 22 1/4'' 24
TTR30-3008 3''*8'' 18 1/4'' 26 1/4'' 27
TTR30-3008-ASAE 3''*8'' 20 1/4'' 28 1/4'' 32
TTR30-3010 3''*10'' 20 1/4'' 30 1/4'' 33
TTR30-3012 3''*12'' 22 1/4'' 34 1/4'' 33
TTR30-3014 3''*14'' 24 1/4'' 38 1/4'' 35
TTR30-3016 3''*16'' 26 1/4'' 42 1/4'' 39
TTR30-3016-ASAE 3''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 39
TTR30-3018 3''*18'' 28 1/4'' 46 1/4'' 1'' 42
TTR30-3020 3''*20'' 30 1/4'' 50 1/4'' 45
TTR30-3024 3''*24'' 34 1/4'' 58 1/4'' 47
TTR30-3030 3''*30'' 40 1/4'' 70 1/4'' 53
TTR30-3036 3''*36'' 46 1/4'' 82 1/4'' 61
TTR30-3040 3''*40'' 50 1/4'' 90 1/4'' 63
TTR30-3048 3''*48'' 58 1/4'' 106 1/4'' 66
Tie Rod Cylinder 3000 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR30-3504 1 3/8'' 3.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT & SAE#8 1'' 30
TTR30-3506 3.5''*6'' 16 1/4'' 22 1/4'' 33
TTR30-3508 3.5''*8'' 18 1/4'' 26 1/4'' 35
TTR30-3508-ASAE 3.5''*8'' 20 1/4'' 28 1/4'' 36
TTR30-3510 3.5''*10'' 20 1/4'' 30 1/4'' 37
TTR30-3512 3.5''*12'' 22 1/4'' 34 1/4'' 38
TTR30-3514 3.5''*14'' 24 1/4'' 38 1/4'' 41
TTR30-3516 3.5''*16'' 26 1/4'' 42 1/4'' 46
TTR30-3516-ASAE 3.5''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 46
TTR30-3518 3.5''*18'' 28 1/4'' 46 1/4'' 1'' 47
TTR30-3520 3.5''*20'' 30 1/4'' 50 1/4'' 49
TTR30-3524 3.5''*24'' 34 1/4'' 58 1/4'' 54
TTR30-3530 3.5''*30'' 40 1/4'' 70 1/4'' 64
TTR30-3536 3.5''*36'' 46 1/4'' 82 1/4'' 66
TTR30-3540 3.5''*40'' 50 1/4'' 90 1/4'' 70
TTR30-3548 3.5''*48'' 58 1/4'' 106 1/4'' 73
Tie Rod Cylinder 3000 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR30-4004 1 3/4'' 4''*4'' 14 1/4'' 18 1/4'' 1/2NPT & SAE#8 1'' 41
TTR30-4006 4''*6'' 16 1/4'' 22 1/4'' 45
TTR30-4008 4''*8'' 18 1/4'' 26 1/4'' 49
TTR30-4008-ASAE 4''*8'' 20 1/4'' 28 1/4'' 50
TTR30-4010 4''*10'' 20 1/4'' 30 1/4'' 52
TTR30-4012 4''*12'' 22 1/4'' 34 1/4'' 56
TTR30-4014 4''*14'' 24 1/4'' 38 1/4'' 60
TTR30-4016 4''*16'' 26 1/4'' 42 1/4'' 64
TTR30-4016-ASAE 4''*16'' 31 1/4'' 47 1/4'' 1 1/4'' 68
TTR30-4018 4''*18'' 28 1/4'' 46 1/4'' 1'' 68
TTR30-4020 4''*20'' 30 1/4'' 50 1/4'' 72
TTR30-4024 4''*24'' 34 1/4'' 58 1/4'' 80
TTR30-4030 4''*30'' 40 1/4'' 70 1/4'' 92
TTR30-4036 4''*36'' 46 1/4'' 82 1/4'' 104
TTR30-4040 4''*40'' 50 1/4'' 90 1/4'' 116
TTR30-4048 4''*48'' 58 1/4'' 106 1/4'' 140
Tie Rod Cylinder 3000 PSI
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TTR30-5004 2'' 5''*4'' 16 1/4'' 20 1/4'' 1/2NPT & SAE#10 1 1/4'' 60
TTR30-5006 5''*6'' 18 1/4'' 24 1/4'' 63
TTR30-5008 5''*8'' 20 1/4'' 28 1/4'' 67
TTR30-5010 5''*10'' 22 1/4'' 32 1/4'' 71
TTR30-5012 5''*12'' 24 1/4'' 36 1/4'' 75
TTR30-5014 5''*14'' 26 1/4'' 40 1/4'' 80
TTR30-5016 5''*16'' 28 1/4'' 44 1/4'' 82
TTR30-5016-ASAE 5''*16'' 31 1/4'' 47 1/4'' 84
TTR30-5018 5''*18'' 30 1/4'' 48 1/4'' 90
TTR30-5020 5''*20'' 32 1/4'' 52 1/4'' 95
TTR30-5024 5''*24'' 36 1/4'' 60 1/4'' 100
TTR30-5030 5''*30'' 42 1/4'' 72 1/4'' 108
TTR30-5036 5''*36'' 48 1/4'' 84 1/4'' 118
TTR30-5040 5''*40'' 50 1/4'' 90 1/4'' 140
TTR30-5048 5''*48'' 60 1/4'' 108 1/4'' 161
　
PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER *A B *C D *E F *G H I J ROD THREAD PORT
TTR3-20- 2.00'' 2.50'' 10.25'' 2.00'' 1.01'' 2.00'' 3.75'' 2.25'' 1.12'' 2.06'' 2.12'' 2.62'' 1.125-12 UNF SAE#8
TTR3-25- 2.50'' 3.00'' 10.25'' 2.00'' 1.01'' 2.00'' 3.75'' 2.25'' 1.12'' 2.06'' 2.12'' 2.62'' 1.125-12 UNF SAE#8
TTR3-30- 3.00'' 3.50'' 10.25'' 2.25'' 1.01'' 2.25'' 3.75'' 2.25'' 1.12'' 2.06'' 2.12'' 2.62'' 1.250-12 UNF SAE#8
TTR3-35- 3.50'' 4.00'' 10.25'' 2.50'' 1.01'' 2.50'' 3.62'' 2.62'' 1.12'' 2.06'' 2.12'' 2.75'' 1.250-12 UNF SAE#8
TTR3-40- 4.00'' 4.50'' 10.25'' 2.50'' 1.01'' 2.50'' 3.56'' 2.62'' 1.12'' 2.06'' 2.12'' 2.75'' 1.250-12 UNF SAE#8
TTR3-50- 5.00'' 5.50'' 12.25'' 2.87'' 1.26'' 2.75'' 4.18'' 3.50'' * 2.25'' 2.12'' 3.31'' 1.500-12 UNF SAE#10
*FOR 8.00'' ASAE STROKE: *A=12.25'' AND FOR 16.00'' ASAE STROKE: *A=15.50''
*FOR 8.00'' STROKE: *E=5.75''(2.00'' TO 3.00'' BORE) *E=5.62''(3.50'' BORE) *E=5.56''(4.00'' BORE)
*FOR 16.00'' ASAE STROKE: *E=9.00''(3.00'' BORE) *E=8.87''(3.50'' BORE) *E=8.81''(4.00'' BORE) *E=7.43''(5.00'' BORE)
*FOR 5.00'' BORE: G(FRONT CLEVIS)=1.18'' *G(END CAP)=1.31''
*FOR 16.00'' ASAE STROKE: *C=1.26''
SEAL TEMPERATURE RANGE: -30℃/+100℃(-22℉/+212℉)
SEAL MAXIMUM SPEED: 3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE=3000 PSI
DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE
