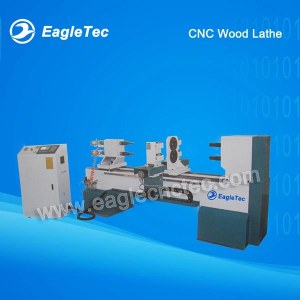

Two Axes CNC Wood Lathe For Making Baseball Bats Banister Balustrade

Two Axes CNC Wood Lathe For Baseball Bats Banister Balustrade

from www.eaglecnctec.com

Jinan EagleTec CNC Machinery Co.,Ltd.

This machine is cnc wood lathe with two axes, one blade, without spindle and gymbals. Based on this configuration, it has machining capacity of turn-milling only, which is specially for making baseball bats or simple type banister or balustrade. Working size is 300mm (Dia) by 1500mm (Length). Two axes design make the cnc wood lathe finish two pieces baseball bats at one time. Besides baseball bat, two axes cnc wood lathe is widely applied to fields like baluster, pillar, banister, column, table legs, chair legs, bed rails, nunchakus and more.

Compared with cnc wood turning lathe EA-TL1530ST , this machine is specially for baseball bats making purpose or other simple type baluster products because it does not have the function of turn-broaching and engraving.

Two Axes CNC Wood Lathe for Baseball Bat Features:

1) Two axes design enables the cnc wood lathe machine to complete two baseball bats at one time.

2) The wood lathe body is made of full cast iron, which ensures the stability and accuracy of the machine.

3) Adopt cnc controller special for wood lathe machine; the operation is simple and easy to learn.

4) Original HIWIN linear guideway and TBI rolling ballscrew has characters of good precision and durable.

5) Turning motor speed can be controlled.

Two Axes CNC Wood Lathe for Baseball Bat Parameters

Model No. | EA-TL1530TS

Number of Axis | Two

Number of Blades for Each Axis | One

Broaching Spindle | without

Working Diameter Range | 20mm – 300mm

Working Length Range | 100mm – 1500mm

Feeding Speed Range | 0 – 3000 rpm

Air Pressure Requirement | 0.6 – 0.8 Mpa

Turning Motor | 4.0KW three - phase asynchronous motor

Power Supply Requirement | AC380V, 3Ph 4 Wires

Electric Frequency Requirement | 50Hz

Lathe Weight | 1500KGS

Packing Dimension | 3150x1220x1680mm (6.46CBM)

Machining Capacity | turn-milling

Application | baseball bats making mainly
