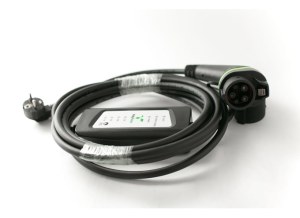

Type2 Portable EV Charging Cable
The cable conforms to the IEC Standard (EU) of EV Charging, which suits electric vehicles manufactured in European countries. For better convenience, it has a simple design that no button on the top of the connector. It consists of Control Box and EU Plug at the tail ed, a nice solution for charging.
Features of Jayuan Type 2 portable charger
Matching IEC 62196-2.
Ergonomic design.
Convenient connector.
Advanced craft shows a nice appearance.
Longer lifespan and better bending thanks to XLPO & TPU material.
The control box of these portable ev charger type2 types can display the current, voltage, charging state, and temperature of the circuit.
IP66 for IC-PCD, IP55 for a plug.
Currents are switchable.
Inner intelligent chip - Fix minor charging problems automatically when working.
Specifications of Type2 Portable Electric Car Charging Cable
|
Electrical |
Environment |
Materials |
Mechanical |
||||
|
Insulation Resistance: |
>1000MΩ (DC500V) |
Operating Temperature: |
-30℃~50℃ |
Shell (Thermoplastic): |
UL94-V |
Life: |
no-load plug>10000times |
|
O |
|||||||
|
Flame Retardent |
|||||||
|
Pins Temperature Rise: |
<50K</span> |
Waterproof IP Grade: |
IP66/IP55 |
/ |
/ |
External Force: |
1meters Drop and 2tons vehicle run over pressure affordable. |
|
Withstand Voltage: |
2500V |
/ |
/ |
/ |
/ |
Insertion Force: |
<100N</span> |
|
Contact Impedance: |
0.5mΩMax |
/ |
/ |
/ |
/ |
/ |
/ |
As one of ev charger manufacturers, we will do our best to meet all the needs of customers.
