UL1185 PVC UL Cable

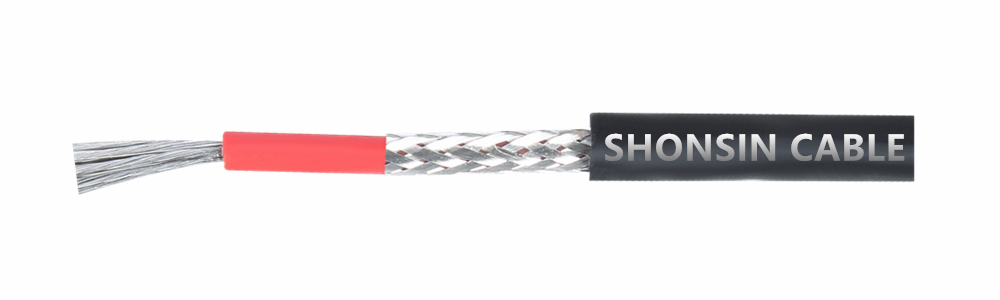

The most common UL coaxial cable is UL1185. They are typically made with four internal layers which includes an inner conductor at the center. A dielectric insulator layer coats the inner conductor, above which a second conductive layer made of braided wires covers the inner insulation layer. All of these are then encompassed with a thin insulating outer layer.
Features of UL1185 PVC UL Cable:
Rated Temperature: 80℃
Rated Voltage: 300V
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 30 AWG - 4/0 AWG, Solid or Stranded.
Insulation: Extruded PVC
|
|
Minimum average thickness |
Minimum thickness at any point |
|
30-16 AWG |
15 mils |
13 mils |
|
15-10 AWG |
30 mils |
27 mils |
|
9-8 AWG |
45 mils |
40 mils |
|
7-2 AWG |
60 mils |
54 mils |
|
1-4/0 AWG |
80 mils |
72 mils |
Shielding: Aluminum Foil + Copper Spiral Wrap / Copper Braiding
Jacket: Extruded PVC, 15 mils (0.38mm) minimum average thickness, 12 mils (0.305mm) minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring of appliances. Tags may indicate the following: 600 V Peak - For Electronic Use Only.
Specifications of UL1185 PVC UL Cable:
|
Cable Type |
Conductor |
Insulator |
Spiral Shield |
Jacket |
||||||
|
Size |
Construction |
Cross Section |
Diameter |
Thickness |
Diameter |
(No. x mm) |
Thickness |
Overall Diameter |
||
|
AWG |
No. |
Copper(Φmm) |
(mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
||
|
UL1185 |
30 |
7 |
0.10 |
0.05 |
0.31 |
0.35 |
1 |
32x0.10 |
0.40 |
2 |
|
28 |
7 |
0.127 |
0.09 |
0.39 |
0.41 |
1.2 |
34x0.10 |
0.40 |
2.2 |
|
|
26 |
7 |
0.16 |
0.14 |
0.49 |
0.41 |
1.3 |
38x0.10 |
0.40 |
2.3 |
|
|
24 |
11 |
0.16 |
0.22 |
0.61 |
0.39 |
1.4 |
42x0.10 |
0.40 |
2.4 |
|
|
22 |
17 |
0.16 |
0.34 |
0.76 |
0.39 |
1.55 |
43x0.10 |
0.40 |
2.55 |
|
|
20 |
26 |
0.16 |
0.52 |
0.94 |
0.43 |
1.8 |
45x0.12 |
0.41 |
2.85 |
|
|
18 |
42 |
0.16 |
0.84 |
1.20 |
0.43 |
2.05 |
51x0.12 |
0.61 |
3.5 |
|
|
16 |
66 |
0.16 |
1.33 |
1.50 |
0.45 |
2.4 |
55x0.12 |
0.58 |
3.8 |
|
