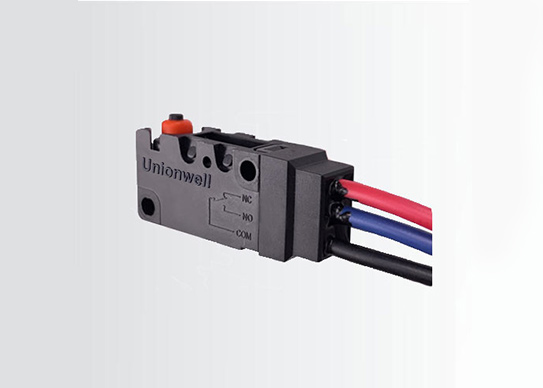

Waterproof Micro Switch G5W11
Prix : USD0.05~USD3.00
Waterproof and dust proof
Compact structure, small contact gap, snap action, high sensitivity
Long life, high precision, and reliability
Widely used in the automotive industry, agricultural equipment, office equipment, etc.
Max approved current at ENEC/UL is 10A
Specifications of waterproof push button micro switch G5W11
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
Micro Switch Manufacturer Unionwell |
|
Model Number |
G5W11 Series |
|
Operating Force |
15gf/25gf/50gf/100gf/200gf |
|
Terminal Type |
Quick Connect/Lead Wires |
|
Lever Type |
No Lever/Hinge/Roller |
|
Circuit Code |
SPDT/SPST-NO/SPST-NC |
|
Certifications |
ENEC, UL/cUL, CQC |
|
OEM/ODM |
Available |
|
Rating |
W1 |
ENEC: 0.1A,125/250VAC; 0.1A 48VDC 40T85 5E4 μ |
W2 |
ENEC: 0.1A,125/250VAC; 5A 48VDC 40T85 5E4 μ |
|
W3 |
ENEC: 10(2)A 125/250VAC,0.5A 125VDC, 0. 25A 250VDC, 40T85, μ, 2E4 |
|
Operating Frequency |
Electrical |
10~30 cycles/minute |
Mechanical |
60 cycles/minute |
|
Contact Resistance(Initiative) |
with Terminals |
50 mΩ Max (without wire type) |
with Wires |
100 mΩ Max (up to the wire length) |
|
Insulation Resistance (at 500VDC) |
100mΩ Min |
|
Dielectric Strength |
Between Terminals |
AC, 1,000V 50-60Hz 1 min |
Between Terminals and Housing |
AC, 1,500V 50-60Hz 1 min |
|
Operating Temperature |
-40°C~+125°C |
|
Operating Humidity |
85% RH Max |
|
Protection Level |
No Lead Wires |
IEC IP67(expect terminal) |
with Lead Wires |
1EC IP67 |
|
Protection Level Against Electric Shock |
Class II |
|
Life Expectancy |
Electrical |
20,000 cycles ~ 100,000 cycles (up to the model selected) |
Mechanical |
Over 500,000 cycles or 1,000,000 cycles (60 cycles/min) |
|
Unit Net Weight |
Approx. 7g |
Unionwell switch, as an excellent micro switch manufacturer, offers a wide range of automotive micro switch for you to choose from.
