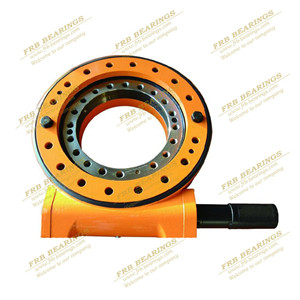

WE9 slewing drive and ring for robot-arm and grab bucket

WE9 slewing drive and ring for robot-arm and grab bucket

Model Number: WE9-62-25H-R
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Output torque: 8kNm
Tilting moment torque: 33.9kN.m
Holding torque: 38.7kN.m
Static Axial rating: 550kN
Static radial rating: 205kN
Dynamic axial rating: 130kN
Dynamic radial rating: 110kN
Tracking Precision: ≤ 0.15°
Gear Ratio: 62: 1
motor: 125CC,160CC,200CC,250CC hydraulic motor
Type: slewing drive for robot-arm and grab bucket
Optional Items: DC,AC Motor,Hydraulic Motor,Encoder
Delivery Time: Within 15 working days after order confirmed and payment received.

Advantage
1) This is caused by FRB independent research and development, designing with the enclosed housing and curved tooth slewing ring. Better rigidity and stronger impact resistance
2) FRB designing the WE Series use curved tooth slewing ring and Straight Worm; it is more touch and stronger anti-sandstorm
3) In Europe and America Mature markets, has been recognized by customers
