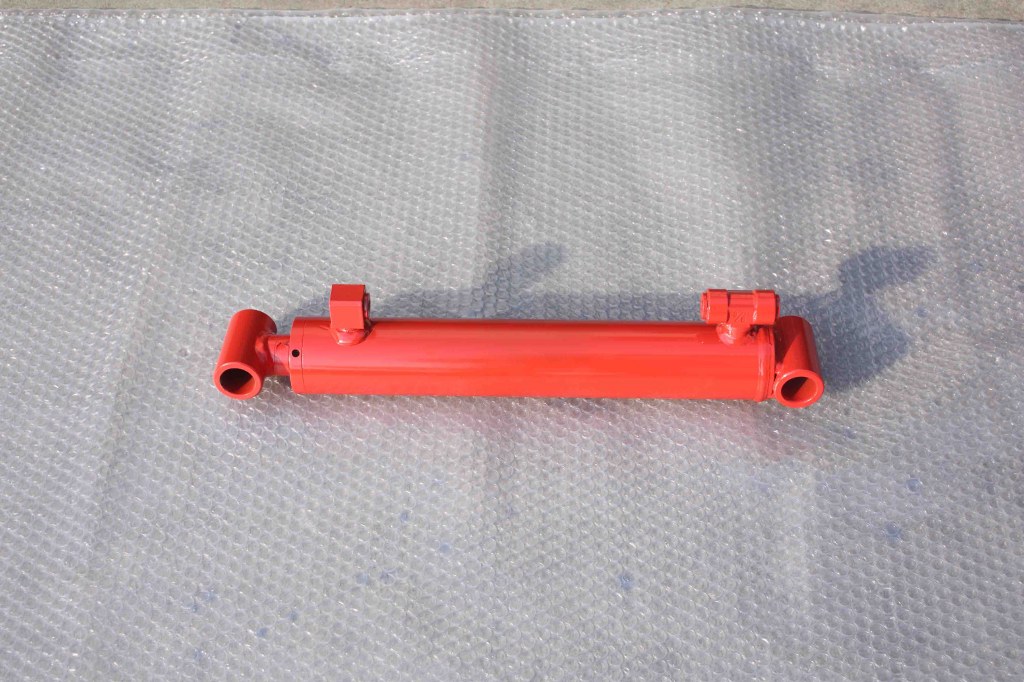

Welded Cylinder-Tube Clevis(3000 PSI)
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Welded Cylinder-Tube Clevis(3000 PSI)

Quantité : 30,000 pcs   Prix : $40-$90

Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-1504 1'' 1.5''*4'' 12'' 16'' 1/4NPT 3/4'' 8
TWBU30-1506 1.5''*6'' 14'' 20'' 9
TWBU30-1508 1.5''*8'' 16'' 24'' 10
TWBU30-1510 1.5''*10'' 18'' 28'' 11
TWBU30-1512 1.5''*12'' 20'' 32'' 13
TWBU30-1514 1.5''*14'' 22'' 36'' 14
TWBU30-1516 1.5''*16'' 24'' 40'' 15
TWBU30-1518 1.5''*18'' 26'' 44'' 16
TWBU30-1520 1.5''*20'' 28'' 48'' 18
TWBU30-1524 1.5''*24'' 32'' 56'' 20
Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-2004 1 1/4'' 2''*4'' 12'' 16'' 3/8NPT 1'' 12
TWBU30-2006 2''*6'' 14'' 20'' 13
TWBU30-2008 2''*8'' 16'' 24'' 15
TWBU30-2010 2''*10'' 18'' 28'' 17
TWBU30-2012 2''*12'' 20'' 32'' 19
TWBU30-2014 2''*14'' 22'' 36'' 20
TWBU30-2016 2''*16'' 24'' 40'' 22
TWBU30-2018 2''*18'' 26'' 44'' 24
TWBU30-2020 2''*20'' 28'' 48'' 25
TWBU30-2024 2''*24'' 32'' 56'' 29
TWBU30-2028 2''*28'' 36'' 64'' 32
TWBU30-2030 2''*30'' 38'' 68'' 34
TWBU30-2032 2''*32'' 40'' 72'' 36
TWBU30-2036 2''*36'' 44'' 80'' 39
TWBU30-2040 2''*40'' 48'' 88'' 42
TWBU30-2048 2''*48'' 56'' 104'' 49
　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　
Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-2504 1 1/2'' 2.5''*4'' 12'' 16'' 1/2NPT 1'' 16
TWBU30-2506 2.5''*6'' 14'' 20'' 18
TWBU30-2508 2.5''*8'' 16'' 24'' 20
TWBU30-2510 2.5''*10'' 18'' 28'' 22
TWBU30-2512 2.5''*12'' 20'' 32'' 25
TWBU30-2514 2.5''*14'' 22'' 36'' 27
TWBU30-2516 2.5''*16'' 24'' 40'' 29
TWBU30-2518 2.5''*18'' 26'' 44'' 31
TWBU30-2520 2.5''*20'' 28'' 48'' 34
TWBU30-2524 2.5''*24'' 32'' 56'' 38
TWBU30-2528 2.5''*28'' 36'' 64'' 43
TWBU30-2530 2.5''*30'' 38'' 68'' 45
TWBU30-2532 2.5''*32'' 40'' 72'' 47
TWBU30-2536 2.5''*36'' 44'' 80'' 51
TWBU30-2540 2.5''*40'' 48'' 88'' 56
TWBU30-2548 2.5''*48'' 56'' 104'' 65
Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-3004 1 1/2'' 3''*4'' 12'' 16'' 1/2NPT 1'' 19
TWBU30-3006 3''*6'' 14'' 20'' 22
TWBU30-3008 3''*8'' 16'' 24'' 24
TWBU30-3010 3''*10'' 18'' 28'' 27
TWBU30-3012 3''*12'' 20'' 32'' 29
TWBU30-3014 3''*14'' 22'' 36'' 32
TWBU30-3016 3''*16'' 24'' 40'' 34
TWBU30-3018 3''*18'' 26'' 44'' 36
TWBU30-3020 3''*20'' 28'' 48'' 39
TWBU30-3024 3''*24'' 32'' 56'' 44
TWBU30-3028 3''*28'' 36'' 64'' 49
TWBU30-3030 3''*30'' 38'' 68'' 51
TWBU30-3032 3''*32'' 40'' 72'' 54
TWBU30-3036 3''*36'' 44'' 80'' 59
TWBU30-3040 3''*40'' 48'' 88'' 63
TWBU30-3048 3''*48'' 56'' 104'' 73
Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-3504 1 3/4'' 3.5''*4'' 14'' 18'' 1/2NPT 1 1/4'' 27
TWBU30-3506 3.5''*6'' 16'' 22'' 30
TWBU30-3508 3.5''*8'' 18'' 26'' 33
TWBU30-3510 3.5''*10'' 20'' 30'' 36
TWBU30-3512 3.5''*12'' 22'' 34'' 39
TWBU30-3514 3.5''*14'' 24'' 38'' 42
TWBU30-3516 3.5''*16'' 26'' 42'' 45
TWBU30-3518 3.5''*18'' 28'' 46'' 48
TWBU30-3520 3.5''*20'' 30 50'' 51
TWBU30-3524 3.5''*24'' 34 58'' 57
TWBU30-3528 3.5''*28'' 38 66'' 64
TWBU30-3530 3.5''*30'' 40 70'' 67
TWBU30-3532 3.5''*32'' 42 74'' 70
TWBU30-3536 3.5''*36'' 46 82'' 76
TWBU30-3540 3.5''*40'' 50 90'' 82
TWBU30-3548 3.5''*48'' 58 106'' 94
Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-4004 2'' 4''*4'' 14'' 18'' 1/2NPT 1 1/2'' 34
TWBU30-4006 4''*6'' 16'' 22'' 38
TWBU30-4008 4''*8'' 18'' 26'' 41
TWBU30-4010 4''*10'' 20'' 30'' 45
TWBU30-4012 4''*12'' 22'' 34'' 49
TWBU30-4014 4''*14'' 24'' 38'' 52
TWBU30-4016 4''*16'' 26'' 42'' 56
TWBU30-4018 4''*18'' 28'' 46'' 60
TWBU30-4020 4''*20'' 30 50'' 63
TWBU30-4024 4''*24'' 34 58'' 71
TWBU30-4028 4''*28'' 38 66'' 78
TWBU30-4030 4''*30'' 40 70'' 82
TWBU30-4032 4''*32'' 42 74'' 85
TWBU30-4036 4''*36'' 46 82'' 93
TWBU30-4040 4''*40'' 50 90'' 100
TWBU30-4048 4''*48'' 58 106'' 115
Welded Bushing Cylinder
Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
TWBU30-5004 2 1/2'' 5''*4'' 14'' 18'' 1/2NPT 1 3/4'' 65
TWBU30-5006 5''*6'' 16'' 22'' 70
TWBU30-5008 5''*8'' 18'' 26'' 75
TWBU30-5010 5''*10'' 20'' 30'' 80
TWBU30-5012 5''*12'' 22'' 34'' 85
TWBU30-5014 5''*14'' 24'' 38'' 90
TWBU30-5016 5''*16'' 26'' 42'' 96
TWBU30-5018 5''*18'' 28'' 46'' 101
TWBU30-5020 5''*20'' 30 50'' 106
TWBU30-5024 5''*24'' 34 58'' 116
TWBU30-5028 5''*28'' 38 66'' 126
TWBU30-5030 5''*30'' 40 70'' 131
TWBU30-5032 5''*32'' 42 74'' 137
TWBU30-5036 5''*36'' 46 82'' 147
TWBU30-5040 5''*40'' 50 90'' 157
TWBU30-5048 5''*48'' 58 106'' 178
Welded Bushing Cylinder
PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B C D E F G H ROD DIAMETER PORT
TWBU15- 1.50'' 2.00'' 8.00'' 1.25'' 0.76'' 2.62'' 2.25'' 2.00'' 1.06'' 1.87'' 1.00'' 1/4NPT
TWBU20- 2.00'' 2.50'' 8.00'' 1.50'' 1.01'' 2.25'' 2.75'' 2.25'' 1.00'' 2.06'' 1.25'' 3/8NPT
TWBU25- 2.50'' 3.00'' 8.00'' 1.50'' 1.01'' 2.25'' 3.25'' 2.25'' 0.81'' 2.18'' 1.50'' 1/2NPT
TWBU30- 3.00'' 3.50'' 8.00'' 1.50'' 1.01'' 2.25'' 3.75'' 2.25'' 0.81'' 2.18'' 1.50'' 1/2NPT
TWBU35- 3.50'' 4.00'' 10.00'' 2.00'' 1.26'' 4.00'' 4.25'' 2.25'' 0.81'' 2.18'' 1.75'' 1/2NPT
TWBU40- 4.00'' 4.50'' 10.00'' 2.25'' 1.51'' 3.75'' 4.75'' 2.50'' 0.81'' 2.18'' 2.00'' 1/2NPT
TWBU50- 5.00'' 5.50'' 10.00'' 3.00'' 1.76'' 3.50'' 5.75'' 3.25'' 1.25'' 2.75'' 2.50'' 1/2NPT
FOR 5.00' 'BORE: 2.00' PINS ARE AVAILABLE WITH REMOVAL BUSHING
FOR 1.50'' TO 4.00'' BORE SAE PORTS ARE AVAILABLE
SEAL TEMPERATURE RANGE: -30℃/+100℃(-22℉/+212℉)
SEAL MAXIMUM SPEED: 3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE=3000 PSI
Localisation : No. 158, Hongcai Road, Pinghu, Zhejiang Province, 314200 Pinghu,
Personne à contacter : William Wang, 0086 1573 85257505
