Wholesale ELTEK Flatpack2 48/1500 Rectifier Module 241114.100

Quantité : 666   Prix : 188,00 €

Wholesale ELTEK Flatpack2 48/1500 Rectifier Module

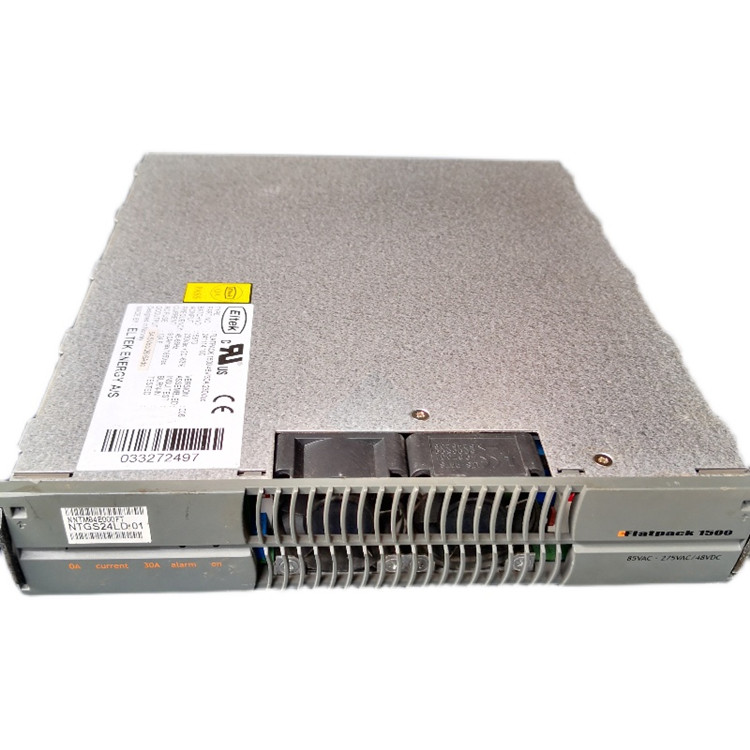

Eltek Flatpack 48/1500 241114.100 48V 1500W Rectifier Module

The Flatpack 1500 48V is a battery charger and rectifier for stand-alone use, or for working in parallel as part of a power rack system controlled by the Flatpack MCU Monitoring & Control Unit. When connected in parallel, the rectifiers provide active current sharing, with or without the Monitoring & Control Unit.


Switch-mode technology with soft switching and a high switching frequency is used to minimize volume and weight, and to obtain fast output voltage regulation. The module accepts large variations on the input voltage (85-300 VAC) and draws sinusoidal current with a soft start power-up.

The Flatpack 1500 48V will operate in ambient temperatures up to +70°C (+158°F). At higher temperatures, the rectifier will derate the output power and deliver the maximum possible power until it goes into an over-temperature shutdown.

The rectifier provides 1500 W output power at 230 VAC nominal input voltage. The rectifier provides max. 600 W output power at 48 VDC at 120 VAC nominal input voltage.

Localisation : Dongcheng Middle Road, Guancheng District, Dongguan City, Guangdong Province, China, 523112 Dongguan,
Personne à contacter : Chin Sam, +8618688812257

Bonne affaire : acheter au vendeur

Consultez notre guide pour effectuer une transaction en toute sécurité ! En aucun cas Algomtl ne peut être tenu responsable des annonces publiées. Seule la responsabilité du vendeur ou de l'acheteur en cas de litige est engagée.
Nous vous invitons à lire nos conditions générales d'utilisations. Vous pouvez aussi vous rendre sur nos FAQ et consulter notre page d'informations sur les risques liés à la contrefaçon.
