X120-D UV Spot Repair System
Prix : 1000USD-40000USD

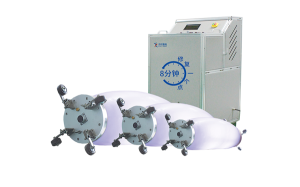

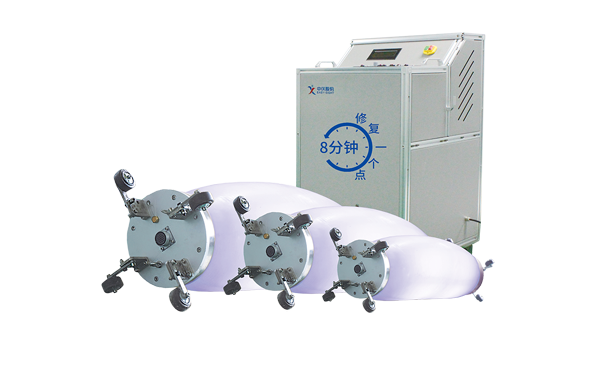

The X120-D UV Spot Repair System is mainly used for the repair of point defects in drainage . According to different pipe diameters, the corresponding airbags are selected to accurately repair the damaged points. It is mainly composed of a main control system and an airbag. Its main characteristics are high efficiency, stability, precision, and controllability. It can repair a damaged point in 8 minutes.
X120-D UV Spot on Repair System Main Parts
Main Control System
Control function: The physical button can not only achieve the automatic take-up of the cable reel and adjust the take-up speed; but also control the air inflation and deflation as well as the switches of the ultraviolet lamp;
Status display: State of the light source; airbag type; pressure value; traveled distance of the airbag; states of air inflation and deflation; and restoration time;
Cable length: Length of the standard cable is 80m
Cable parameters: The cable interior adopts the air pipe of 6mm, four cores of 1.5mm and two wires of the diameter <15mm, showing the characteristics of water resistance, abrasive resistance, acid fastness, alkali resistance and corrosion resistance;</span>
Automatic winding displacement: Ensure the regular distribution of the cable on the cable reel in the course of take-up and pay-off;
Counting: Adopt the high-precision encoder with the counting resolution ratio of 1mm ;
Power supply: AC220V input, with the maximum instantaneous power of 3KW. It's suggested to use the 5KW generator for power
Dimension: 1135mm*660mm*590mm;
Weight: 120kg (including the weight of cable).
Packer
Packer Specification |
CA1 |
CA2 |
CA3 |
Packer length |
1410 |
1507 |
1697 mm |
Silica gel length |
1200 |
1200 |
1200 mm |
Silica gel diameter |
150 |
200 |
300 mm |
Packer minimum diameter |
172 |
261 |
361 mm |
Minimum pipe diameter for restoration |
200 |
300 |
400 mm |
Maximum pipe diameter for restoration |
300 |
400 |
600 mm |
Restoration length |
<600</span> |
<600</span> |
<600 mm</span> |
Packer Weight |
16.3 |
22.6 |
30.6 KG |
Wuhan Easy Sight Technology Co., Ltd, found in Nov 2000, in Wuhan, Hubei province, China, is a leading producer of pipe cleaning, inspection, and pipe rehabilitation equipment. In July 2015, Easy-Sight successfully became the first listed company on the New Third Board in the industry in China with a stock code of 833122. As a team with over 300 employees, Easy Sight is dedicated to providing a whole series of sewer industry products and systems to meet customers' different requirements.
Personne à contacter : Xiao Ella, 86 027 59376719
