X5-HMA CCTV Inspection Crawler

X5-HMA inspection crawler robot is a high-definition robotic crawler pipe inspection system, which can be controlled by a personal notebook computer or a dedicated controller. A laptop computer or a dedicated controller is connected to other parts of the system through a wireless (wired) method, and displays and stores high-definition detection videos in real-time.

X5-HMA CCTV Inspection Crawler Main Parts

X5-HMA Crawler

Suitable for pipe DN150-300

6-wheel-drive IP68 up to 10m water depth

Include pressure sensor, inclination sensor, roll and pitch sensor

Power supply: cable reel Motor: 2x25W DC

Speed: Max 15m/min Inclination: Max 45°

Working ambient temperature: -10℃~50℃

Material: Brass nickel-plating stainless steel

Compatible with X5-H series camera

Dimension( LxWxH): 385x120x102.5mm

Weight: about 11.5 kg

Cable Reel

Cable length: 150m

Motor-driven

4-pin cable, drawing anti-Kevlar 300 kg, imported polyurethane sheath, cable diameter <6mm, waterproof, wear, acid, corrosion.</span>

Cable retracting automatically or manually

Accurate cable counter, devition within 1mm

Compatible with Easy-Sight X5-H series pipe crawlers and X4 sonar inspection system

Protection class: IP63

Dimension( LxWxH): 570x395x475mm

Weight: about 45 kg( with 150m cable)

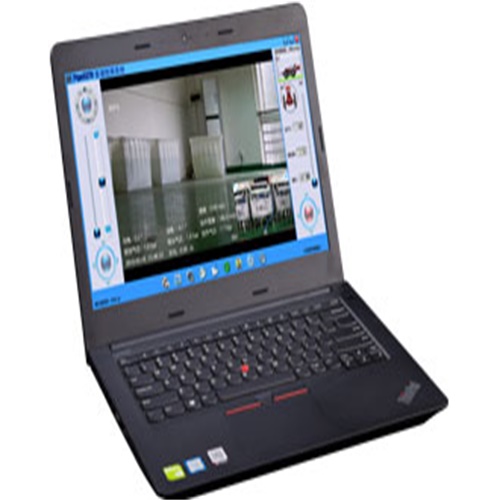

Main Controller

Regular computer or tablet can be used at main controller with build-in inspection collection software. Both main controller and joystick can control the cctv pipe crawler forward, back and turn, camera rotating, light and so on.

HD Axial Camera

Working ambient temperature: -10℃~50℃

Light source: 6x 3W LED light

Lens: color 1/3”, 2592*1520, CMOS, viewing angle 6.7°-68°,sensitive 0.1 lux, auto-focusing

Dimension( LxWxH): 100x75x75mm

Weight: about 0.6kg

If you want to know more kinds of cctv pipe inspection cameras, please visit our website.
