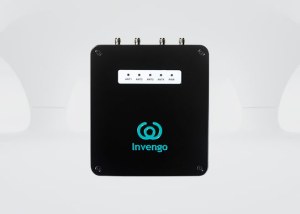

XC-RF861 Linux RFID Reader

Physical Parameters

Dimensions

196 x 176 x 38 mm

7.71 x 6.92 x 1.5 in

(without accessories)

Weight

Approx. 1 kg / 2.20 lbs

(without accessories)

Case Material

Aluminum alloy

Environmental

Operating Temperature

-20˚C to 70˚C (-4˚F to 158˚F)

Power adaptor -0˚C to 40˚C

(32˚F to 104˚F)

Storage Temperature

-30˚C to 75˚C (-22˚F to 167˚F)

Humidity Range

5% to 95% RH, no condensation

Power Source

Adapter(not included)

AC input 100V to 240V

1.5A, 50 to 60Hz; DC output 24V

± 5%/2.5A

DC Power Supply

DC input 10 to 30V

(24V/2A recommended)

Power over Ethernet

IEEE 802.3at

Power Consumption

Approx. 12W

UHF RFID

Supported Protocols

EPC global UHF Class 1Gen2,

ISO 18000-63

Frequency

840 to 960 MHz

(Support Global Frequency)

Communication Interface

RS-232

Default baud rate 115200 kps,

8 data bits, no parity, 1 stop bit,

no flow control

RJ45

Default IP 192.168.0.210

Performance Parameter

GPIO

Two isolated optocoupler inputs

(5C to 12V); Two isolated

optocoupler outputs (High level

5V, Low level 0V); Two relay

outputs (DC30V, 1000mA;

AC125V, 500mA)

Tag Data Rate

40kbps to 400 kbps

RF Output Power

9 to 30dBm (step 1dBm)

Memory

128MB SDRAM, 256MB Flash

Product Certification

FCC ID

TQ4XC-RF861

Others

RoHs, CE
