XT-74L-74LED(74paragraph 74lamp)Bare board
Shenzhen Jercio Technology Co., Ltd specializing in the production of built-in IC lamp lights, full-color control 74L-74LED, XT1511 driver IC single point single control flexible strip
74L-74LED/M waterproof light, Happy Valley 74 lamp built-in IC full-color lamp of spot SMD LED 5050RGB lamp XT1511 symphony of lights in a 74 light valley water led full-color digital soft light strips
Full color lamp with product description:
The lamp strip adopting the world's first built-in IC series lamp driving light emitting various XT1511 drive IC based plus a 104 capacitors. Driving lamp lamp panel looks very simple and beautiful, and the same XT1511 drive IC is a performance very stable brightness is very high. It is made of beads, high brightness, stable performance, surface appearance, concise, convenient production, low cost.
It is the ideal choice for lighting lighting outdoor lighting design.
1, Product type: XT1511 color light one meter 74 lights 74;
2, Light source: SMD 5050 LED;
3, Plate: FPCB;
4, Taiwan epstar chip, chip, and other chips in Taiwan;
5, IC model: XT1511, (1 m 74 IC, 1 IC 1 LED control lamp);
6, Gray level: 256, (1 m 74 pixels);
7, LED number: 74 lights / meters, every 1 lights for a group, you can cut;
8, Light emitting angle: 120 degrees;
9, Light emitting color: can be adjusted by the controller, white, red, yellow, blue, green, and so on;
10, Standard operating voltage: 5V DC;
11, Power: 22.2W + 10% / m;
12, Waterproof grade: waterproof, epoxy (IP65), (IP67), casing casing solid glue (IP68) etc.;
13, FPCB board size: width:12 mm, thickness: 2 oz;
14, FPCB color: white, yellow, black (in addition to white outside the need to be customized);
15, Packing: 4 m / roll, light bar back 3M adhesive, electrostatic bag packaging;

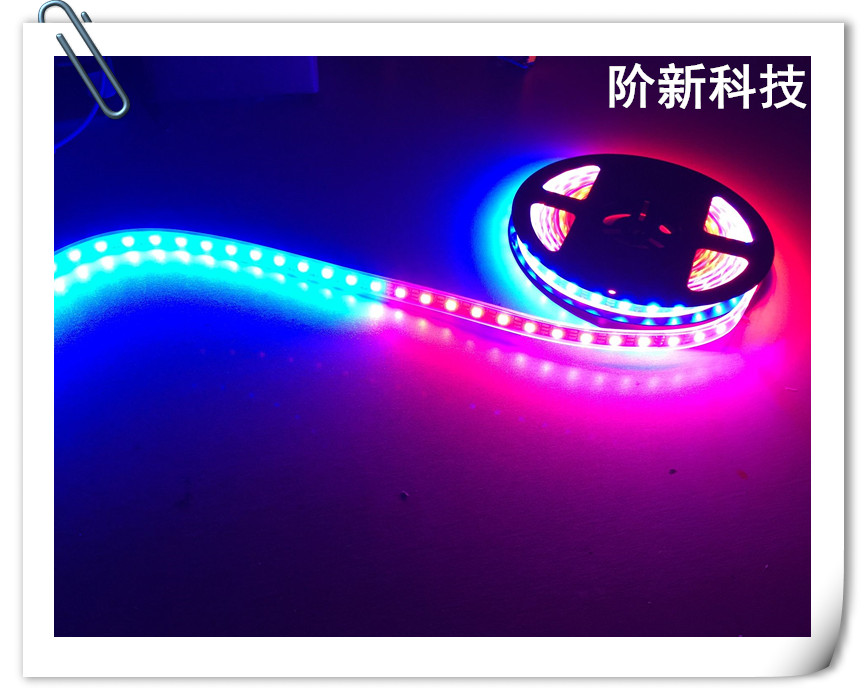

Full color lights with a product picture:
