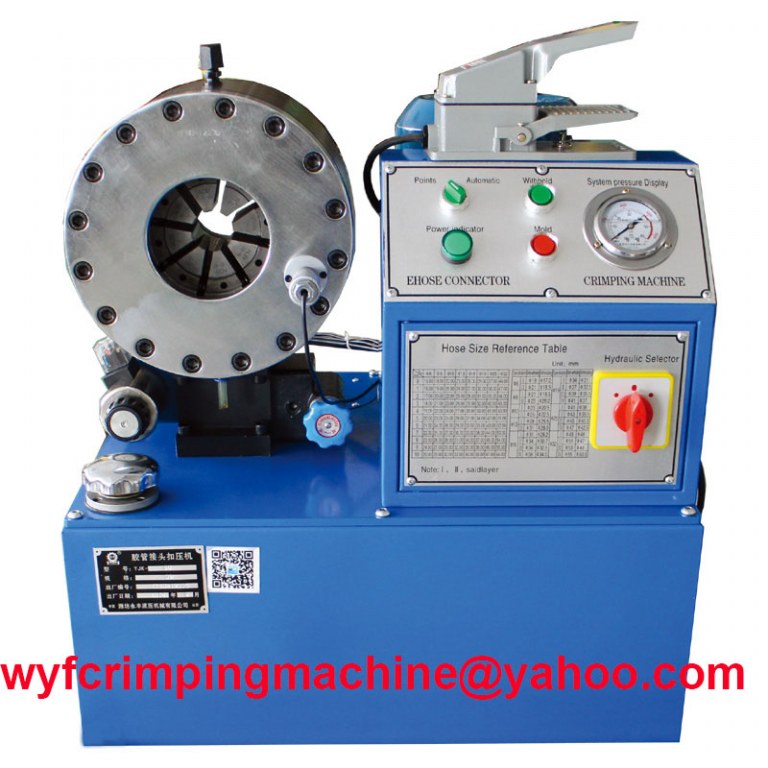

YJK-80 Hydraulic Hose Crimping Machine
Quantité : 1 set Prix : USD $2800
Product Description
The YJK-80 Crimper with a hose capacity up to1½ inch 2 wire hose and 1¼ inch 4 wire hose offers many of the same features found on larger YJK crimpers. The smaller quick acting head and pr ecise micrometer adjustment make this crimper a good choice for workshops which do not require the h ose capacity of the larger crimpers.
Technical Data
|
Crimping Force (Ton) |
600 |
|
Max Hose Diameter (2 wire) |
1½″ |
|
Max Hose Diameter (4 wire) |
1¼″ |
|
Max Industrial Hose Diameter |
2″ |
|
Max Opening w/o Dies (mm) |
80 |
|
(L*W*H) (mm) |
600*480*600 |
|
Weight (kg) |
220 |
|
Power Supply (V) |
220/380 |
|
Motor Power (kw) |
3/4 |
|
Manual/Auto Crimping |
Yes |
|
Inch/Metric Settings |
Metric Only |
|
Dies Sets |
8+4 |
Die Specifications
Dies for High Pressure Oil Pipe
|
Model |
Φ6 |
Φ8 |
Φ10 |
Φ13 |
Φ16 |
Φ19 |
Φ25 |
Φ32 |
|
Crimping range (mm) |
15-25 |
18-28 |
20-30 |
23-33 |
26-36 |
29-39 |
37-47 |
46-56 |
|
Die length (mm) |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
Dies for Low Pressure Oil Pipe
|
Model |
Φ6 |
Φ8 |
Φ10 |
Φ12 |
|
Crimping range (mm) |
6 |
8 |
10 |
12 |
|
Die length (mm) |
35 |
35 |
35 |
35 |
Personne à contacter : Stephan King, 86 18660625023
