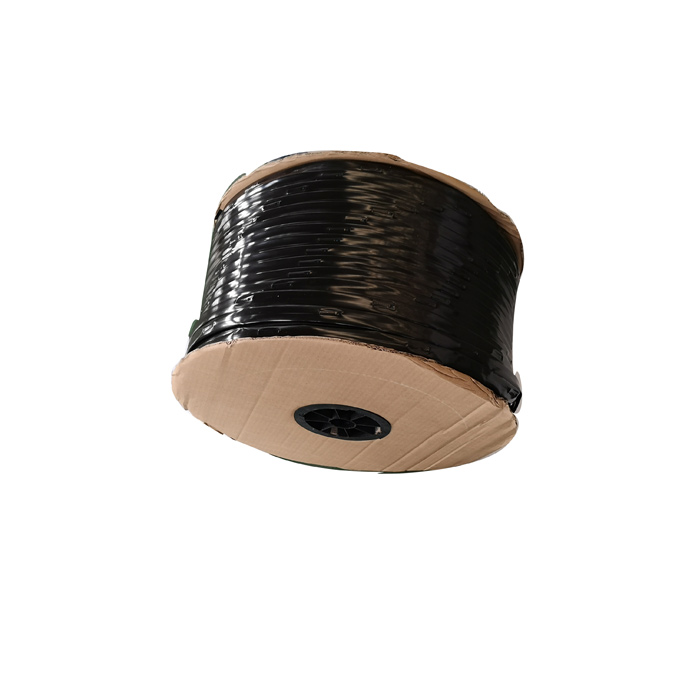

DRIP TAPE WITH FLAT DRIPPER
Flat dripper drip tape : flat drip tape uses plastic hose to send water to the roots of crops for local irrigation through drippers on a capillary with a diameter of about 16mm. It is through the dripper or flat drip irrigation hose that the outflow orifice is very small, and the water is dropped uniformly and slowly into the soil near the root of the crop.
The drippers are spaced as per client's requirements.The drip tapes are connected to main pipe(PVC layflat hose or PE layflat hose).
Filtration of water for drip tape
Plastic screen filter: well water
Plastic disc filter: ground water
Highly resistant to plugging
Made of virgin raw material, high strength and long durability
Easy installation and removal, saving on time and labor
Precision performance
Applications of Flat Drip Tape
Greenhouse: cucumber, strawberry, tomato, watermelon
Land cultivation: tobacco, ginseng, pepper, oil palm
Production standard: ISO 9261: 2004
Specifications of Flat Drip Tape
|
Product Code |
Diameter |
WallThickness |
Spacing |
Flow Rate (L/H) |
Working Pressure(M) |
Roll Length |
|
SZSP0116018100 |
Dn 16mm |
0.18mm |
10cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116018150 |
Dn 16mm |
0.18mm |
15cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116018200 |
Dn 16mm |
0.18mm |
20cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116018300 |
Dn 16mm |
0.18mm |
30cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116020100 |
Dn 16mm |
0.20mm |
10cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116020150 |
Dn 16mm |
0.20mm |
15cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116020200 |
Dn 16mm |
0.20mm |
20cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116020300 |
Dn 16mm |
0.20mm |
30cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116025100 |
Dn 16mm |
0.25mm |
10cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116025150 |
Dn 16mm |
0.25mm |
15cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116025200 |
Dn 16mm |
0.25mm |
20cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116025300 |
Dn 16mm |
0.25mm |
30cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
2000m |
|
SZSP0116030200 |
Dn 16mm |
0.30mm |
20cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1500m |
|
SZSP0116030300 |
Dn 16mm |
0.30mm |
30cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1500m |
|
SZSP0116030400 |
Dn 16mm |
0.30mm |
40cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1500m |
|
SZSP0116040200 |
Dn 16mm |
0.40mm |
20cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1500m |
|
SZSP0116040300 |
Dn 16mm |
0.40mm |
30cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1500m |
|
SZSP0116040400 |
Dn 16mm |
0.40mm |
40cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1500m |
|
SZSP0116050200 |
Dn 16mm |
0.50mm |
20cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1000m |
|
SZSP0116050300 |
Dn 16mm |
0.50mm |
30cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1000m |
|
SZSP0116050400 |
Dn 16mm |
0.50mm |
40cm |
1.38;2.0;2.2; 2.7;3.0 |
0.1 |
1000m |
Suzhou Seapeak Co., Ltd. is a leading drip irrigation system company, we provide dripirrigation adapter, flat drip irrigation pipe, dripping tape, flat drip pipe, drip tape 1000m and etc. Want to know more? Contact us.
