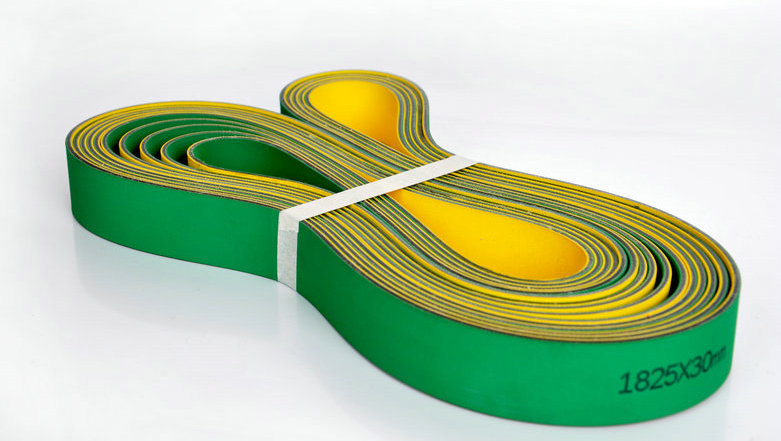

Nylon Flat Belt
Nylon core flat belt belongs to high speed drive belt with innovative and unique material structure. We can offer rubber nylon core transmission belt and leather nylon core transmission belt. Benefit from our long-term research and development, we have mastered mature manufacturing technology and formula. In the mean time, we use imported nylon base and internationally advanced equipment, which result in the great properties of our nylon flat belt.
Properties Of Nylon Flat Belt
Strong wear resistance and fatigue resistance
High tensile strength and high efficiency
Future resistance and low elongation
Cost-effective and long service life
Anti-static and low noise
Lightweight and oil resistant
Specification Of Nylon Flat Belt
|
Type |
Extend the tension by 1% |
Minimum pulley diameter (mm) |
Maximum tension（N/mm) |
Tensile strength （N/mm)
|
Thickness（mm) |
Strength layer material
|
Elongation of installation |
Cladding material |
Permanent antistatic |
Working Temperature(℃) |
Friction coefficient |
Interface |
Width（mm) |
|
ST12 |
3.5 |
20 |
9 |
140 |
1.2 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST15 |
5 |
40 |
12 |
200 |
1.5 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST17 |
5 |
50 |
12 |
200 |
1.7 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST20 |
7.5 |
75 |
18.5 |
200 |
2.0 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST23 |
10 |
100 |
25 |
340 |
2.3 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST25 |
12.5 |
125 |
32 |
400 |
2.5 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST30 |
12.5 |
125 |
32 |
400 |
3.0 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST32 |
15 |
150 |
37.5 |
600 |
3.2 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST35 |
15 |
150 |
37.5 |
600 |
3.5 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
ST40 |
17.5 |
175 |
43.5 |
700 |
3.8 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
P0 |
2.5 |
20 |
6 |
80 |
1.2 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
P1 |
5 |
50 |
12 |
200 |
1.5 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
P2 |
7.5 |
75 |
18.5 |
300 |
1.8 |
PA |
1.5-2.5 |
XNBR |
+ |
-20- +100 |
0.7 |
T |
520 |
|
LL1 |
5 |
50 |
12 |
200 |
3.7 |
PA |
1.5-2.5 |
NBR |
// |
-20- +100 |
0.3 |
T |
400 |
|
LL2 |
7.5 |
75 |
18.5 |
300 |
4.0 |
PA |
1.5-2.5 |
NBR |
/ |
-20- +100 |
0.3 |
T |
400 |
|
LT1 |
5 |
50 |
12 |
200 |
2.7 |
PA |
1.5-2.5 |
NBR |
/ |
-20- +100 |
0.3 |
T |
400 |
|
LT2 |
7.5 |
75 |
18.5 |
300 |
2.9 |
PA |
1.5-2.5 |
NBR |
/ |
-20- +100 |
0.3 |
T |
400 |
|
LT4 |
7.5 |
75 |
18.5 |
300 |
4.5 |
PA |
1.5-2.5 |
NBR |
/ |
-20- +100 |
0.3 |
T |
400 |
Applications Of Nylon Flat Belt
It is widely applied for machinery with compact transmission mechanisms, high linear speed, and a large speed ratio.
1). Applied as tangential drive belt including rotor spinning frame, double twister, texturing machine, pile twister, hairdryer, etc.
2). Applied as spindle belt and flat belt for parallel or double side drive including carding machine, roving frame, spinning machine, drawing frame, circular knitting machine, etc.
3). For transmission flat belts of leather and nylon core, they are particularly applied for overload or cross drive.
4). Applied on the loom as transmission flat belt and brown belt.
It is specially used under harsh environments such as oil pollution, as transmission flat belts for large and medium-sized machinery such as paper machines, ventilators, mixers, rolling mills, turbines, marble cutting machines, pumps, etc.
Dehai Youli is a professional industrial belting company and nylon belt manufacturers, we provide nylon sandwich flat belt, folder gluer belt and etc. Want to know more? Please contact us.
