Prodigy S7-9P Logic System

The Prodigy S7-9P Logic System by S2C is an entry-level multi-FPGA prototyping solution that utilizes the advanced Xilinx VU9P FPGA (also known as XCVU9P / XCVU9P Xilinx FPGA) from the Virtex UltraScale+ series. Abundant DSP slices and memory resources make it an ideal choice for verifying multiple computing chips.
FPGA Resources - Xilinx Virtex Ultrascale+ VU9P
2.59M system logic cells
Up to 345.9Mb of internal memory
Up to 6,840 DSP slices
Technical Highlights
Supports 25Gbps transceivers
Offers up to 14.3M ASIC gates capacity
Provides 676 high-performance I/Os and 48 GTY transceivers on 11 high-speed connectors
4x QSFP28 optical interfaces, each supporting 100G applications

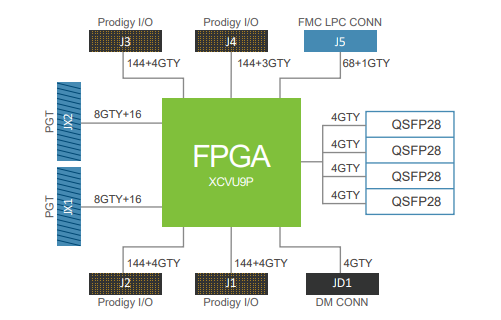

Prodigy™ S7 Logic System Configuration Table
Prodigy™｢ S7 Logic System Configuration Table
Estimated ASIC Gates (M) 14.3
FPGAs 1 * XCVU9P
System Logic Cells (K) 2,586
FPGA Internal Memory (Mb) 345.9
DSP Slices 6,840
External User I/Os 676
SerDes Transceivers 48
Prodigy Connectors (GPIO, LVDS) 4
PGT Connectors (SerDes) 2
Other Connectors 1 * FMC LPC
4 * QSFP28
Datasheet Download
If you want to know more about vu9p board , please visit our website.
S2C is a leading global supplier of FPGA prototyping solutions for today's innovative SoC and ASIC designs, now with the second largest share of the global prototyping market. S2C has been successfully delivering rapid SoC prototyping solutions since 2003. With over 600 customers, including 6 of the world's top 10 semiconductor companies, our world-class engineering team and customer-centric sales team are experts at addressing our customer's SoC and ASIC design and verification needs. S2C has offices and sales representatives in the US, Europe, mainland China, Hong Kong, Korea and Japan.

More kinds of prototyping hardware, please contact us.
